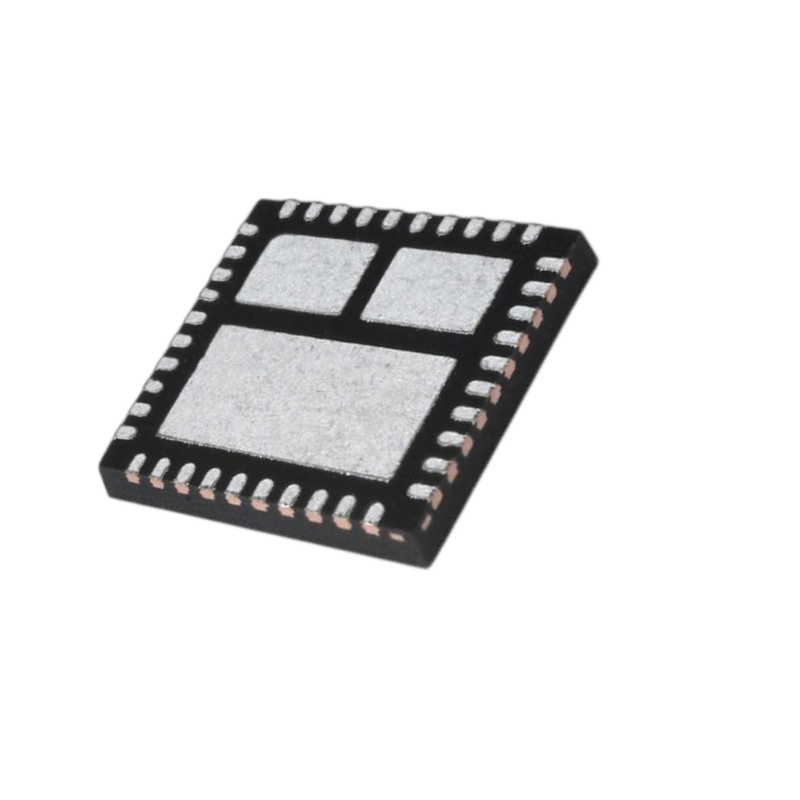

Images are for reference only See Product Specifications
vishay SIC471ED-T1-GE3
Functional characteristics: Supports high current output of up to 12A
Brands: Vishay
Mfr.Part #: SIC471ED-T1-GE3
Datasheet: SIC471ED-T1-GE3 Datasheet (PDF)
Package/Case: MLP55-27L
RoHS Status:
Stock Condition: 9458 pcs, New Original
Product Type: Switching Voltage Regulators
Warranty: 1 Year Ovaga Warranty - Find Out More
0
1
*All prices are in USD
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $2.695 | $2.695 |
| 10 | $2.566 | $25.660 |
| 30 | $2.489 | $74.670 |
| 100 | $2.159 | $215.900 |
| 500 | $2.121 | $1060.500 |
| 1000 | $2.106 | $2106.000 |
In Stock:9458 PCS
SIC471ED-T1-GE3 General Description
SIC471ED-T1-GE3 is a silicon carbide (SiC) Schottky diode rectifier with a current rating of 4.5A and a voltage rating of 700V. It is designed for high-frequency switching power applications, providing low forward voltage drop and fast switching speeds.This diode is housed in a compact, surface-mount PowerPAK package with a footprint of 2.2mm x 2.2mm, making it suitable for space-constrained applications. It features a maximum junction temperature of 175°C and a low thermal resistance for efficient heat dissipation.The SIC471ED-T1-GE3 is suitable for a wide range of power management applications, including power supplies, motor drives, solar inverters, and electric vehicle charging systems. Its high breakdown voltage and low reverse recovery charge make it an ideal choice for high-efficiency and high-power density designs.
Features
Application
Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Category | Switching Voltage Regulators | RoHS | Details |
| REACH | Details | Output Voltage | Adjustable |
| Output Current | 12 A | Input Voltage, Max | 55 V |
| Number of Outputs | 1 Output | Topology | Buck |
| Package / Case | MLP55-27L | Mounting Style | SMD/SMT |
| Switching Frequency | 100 kHz to 2 MHz | Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C | Series | SIC471 |
| Input Voltage, Min | 4.5 V | Brand | Vishay Semiconductors |
| Input Voltage | 4.5 V to 55 V | Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 | Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V | Tradename | microBUCK |
| Type | MicroBuck |
