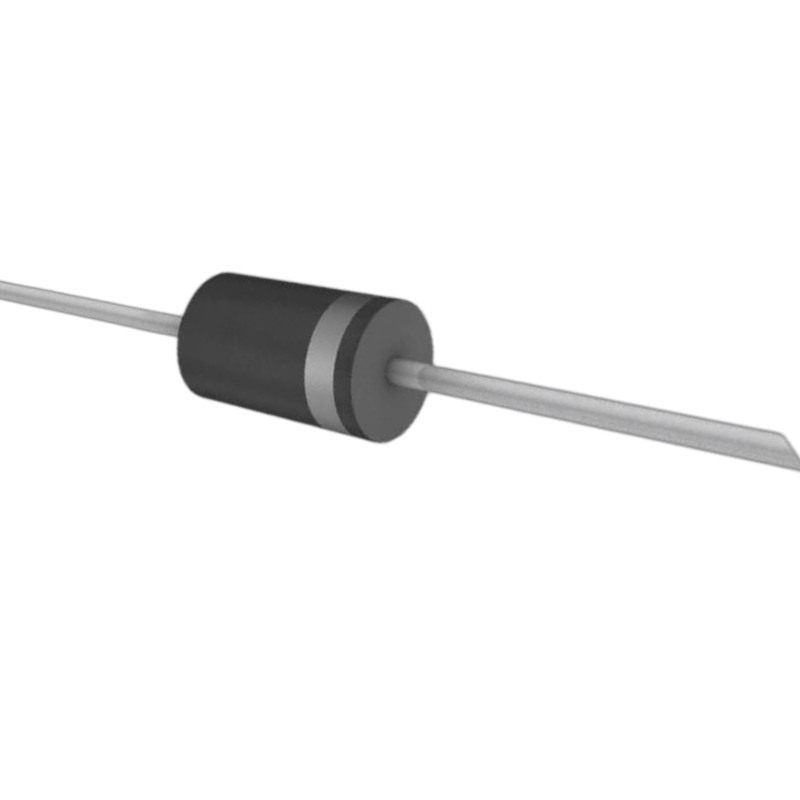

Images are for reference only See Product Specifications

ST STPS5L40RL

Name: STPS5L40RL
Rating: 4.5 (10 reviews)

STPS5L40 Series 40V 5A Through Hole Power Schottky Rectifier - DO-201AD

Brands: STMicroelectronics, Inc

Mfr.Part #: STPS5L40RL

Datasheet: STPS5L40RL Datasheet (PDF)

Package/Case: DO-201AD

Product Type: Diodes & Rectifiers

RoHS Status:

Stock Condition: 2576 pcs, New Original

Add To Bom

Quick Quote

Please submit RFQ for STPS5L40RL or email to us: Email: [email protected], we will contact you within 12 hours.

Quantity^*

Email^*

Contact Name^*

Company

Remark

STPS5L40RL General Description

Axial Power Schottky rectifier suited for Switch Mode Power Supplies and high frequency inverters.Packaged in DO-201AD, this device is intended for use in low voltage output for small battery chargers & consumer SMPS such as DVD and Set-Top-Box

Features

Negligible switching losses
Low thermal resistance
Low forward voltage drop for higher efficiency
Avalanche capability specified

Specifications

Parameter	Value	Parameter	Value
Manufacturer:	STMicroelectronics	Product Category:	Schottky Diodes & Rectifiers
RoHS:	Details	Product:	Schottky Rectifiers
Mounting Style:	Through Hole	Package / Case:	DO-201AD-2
Configuration:	Single	Technology:	Si
If - Forward Current:	5 A	Vrrm - Repetitive Reverse Voltage:	40 V
Vf - Forward Voltage:	500 mV	Ifsm - Forward Surge Current:	150 A
Ir - Reverse Current:	200 uA	Minimum Operating Temperature:	- 65 C
Maximum Operating Temperature:	+ 150 C	Series:	STPS5L40
Packaging:	Cut Tape	Brand:	STMicroelectronics
Height:	5.3 mm	Length:	9.5 mm
Product Type:	Schottky Diodes & Rectifiers	Factory Pack Quantity:	1900
Subcategory:	Diodes & Rectifiers	Termination Style:	Axial
Type:	Schottky Rectifier	Width:	5.3 mm
Unit Weight:	0.038801 oz
